  • 产品信息:金坛活性炭吸附塔-金坛活性炭净化塔【常州蓝阳环保设备厂】

    金坛活性炭吸附塔-金坛活性炭净化塔【常州蓝阳环保设备厂】

    产品型号: LANYANG-HXT200
    品  牌: 蓝阳
    • ≧2 台
      ¥11000.00
    所 在 地: 江苏常州
    更新日期: 2019-07-23
    详细信息
      金坛活性炭吸附塔-金坛活性炭净化塔【常州蓝阳环保设备厂】常州蓝阳环保设备厂位于经济发达、风景秀丽的长江三角洲——江南水乡常州新北区。公司拥有雄厚的科技力量,专业化的生产设备和完善的检测仪器,拥有多台数控纤维缠绕、真空导入、RTM模压等复合材料生产设备。公司经营:复合材料制品、塑料制品、水处理设备制造、玻璃鳞片衬里工程的设计、施工。产品广泛应用于军工、交通、石化、冶金、电力、纺织等领域,公司已成为WTC世界贸易中心会员,产品远销欧美、东南亚、中东等地区。公司年生产能力8000吨。
    蓝阳环保,咨询热线: ,
      公司已通过ISO9001质量管理体系认证、ISO14001环境管理体系认证、OHSAS18001职业健康安全管理体系认证,取得全国工业产品(非金属容器)生产许可证(许可号:(苏)XK12-001-00053)及中国防腐施工壹级资质证书(证书编号:中腐协秘资字0155号);公司系高新技术企业、江苏省民营科技企业、中国工业防腐蚀技术协会会员、江苏建筑材料工业协会会员,产品荣获市颁发的质量优胜奖。经中国农业银行常州市分行对企业资金信用、经济效益、经营管理等方面评估,被评为信用优级(AAA)企业。

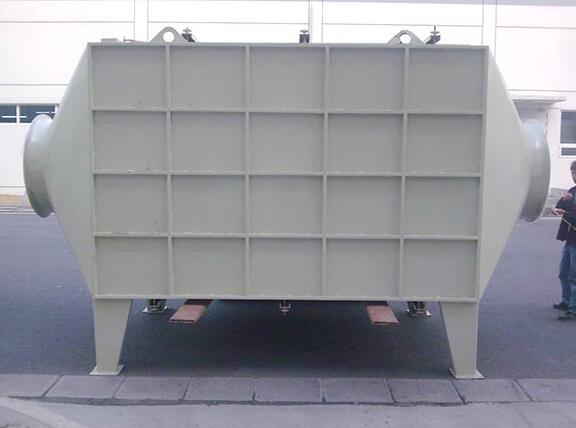

      活性炭废气吸附塔

      一、活性炭吸附塔概述

      活性炭吸附塔又可称为活性炭吸附箱吸附器,活性炭吸附过滤器,活性炭吸附箱。HT系列|活性炭吸附过滤器(塔、箱)是我公司研制生产的一种废气过滤吸附异味的环保设备产品,活性炭吸附塔塔体可用不锈钢、碳钢、PP板等材质制作。活性炭吸附塔具有吸附效率高、适用面广、维护方便、能同时处理多种混合废气等优点,活性炭具有去除甲醛、苯、TVOC等有害气体和消毒除臭等作用,活性炭吸附塔现广泛用于 电子原件生产、电池(电瓶)生产、酸洗作业、实验室排风、冶金、化工、医药、涂装、食品、酿造等有机废气处理,其中喷漆废气处理的净化应用*为广泛。

      二、工作原理

      有机废气气体由风机提供动力,正压或负压进入活性炭吸附器塔体,由于活性炭固体表面上存在着未平衡和未饱和的分子引力或化学健力,因此当此固体表面与气体接触时,就能吸引气体分子,使其浓聚并保持在固体表面,污染物质从而被吸附,废气经过滤器后,进入设备排尘系统,净化气体高空达标排放。

      不含尘有机废气活性炭吸附工艺图

      含尘有机废气/喷漆废气处理活性炭吸附工艺图示

      三、技术简介

      活性炭是一种黑色粉状、粒状或丸状的无定形具有多孔的炭。主要成份为炭,还含有少量氧、氢、硫、氮、氯。也具有石墨那样的精细结构,只是晶粒较小,层层不规则堆积。具有较大的表面积(500~1000㎡/克)。有很强的吸附能力,能在它的表面上吸附气体,液体或胶态固体。对于气、液的吸附可接近于活性炭本身的质量的。

      其吸附作用是具有选择性,非极性物质比极性物质更易于吸附。在同一系列物质中,沸点越高的物质越容易被吸附,压越大、温度越低,浓度越高,吸附量越大,反之,减压、升温有利气体的解吸。

      活性炭常用于气体的吸附、分离和提纯、溶剂的回收、糖液、油脂、甘油、药物的脱色剂,饮用水或冰箱的除臭剂,防毒面具的滤毒剂,还可用作催化剂或金属盐催化剂的截体。

      当有机废气气体由风机提供动力,正压或负压进入塔体,由于活性炭固体表面上存在着未平衡和未饱和的分子引力或化学健力,因此当此固体表面与气体接触时,就能吸引气体分子,使其浓聚并保持在固体表面,污染物质及气味从而被吸附,废气经活性炭吸附塔后,进入设备排尘系统,净化气体高空达标排放。

      活性炭吸附器产品优点:

      ①吸附效率高,适用面广;

      ②维护方便,无技术要求;

      ③能同时处理多种混合废气。

      活性炭吸附器分类:

      可分为方形或圆形。

      活性炭吸附过滤器适用范围:

      活性炭吸附器主要应用于: 电子原件生产、电池(电瓶)生产、酸洗作业、实验室排风、冶金、化工、医药、涂装、食品、酿造及家具生产等行业的废气净化,其中*适用于喷漆废气的处理净化。

      四、HT系列|活性炭吸附过滤器设备型号及参数

      型号外形尺寸(m)活性炭过滤面积(㎡)进出口尺寸(mm)处理风量上限设备阻力(pa)

      HT-501.2x0.8x0.70.48?1601000m?/h500~600

      HT-1001.35x0.8x0.950.96?2001750m?/h500~600

      HT-2001.55x1.0x1.331.8?3153240m?/h700~800

      HT-2502.1x1.0x0.982.4?3554320m?/h700~850

      HT-3502.2x1.0x1.383.6?4006480m?/h700~850

      HT-5002.4x1.0x1.784.8?5008460m?/h700~850

      HT-6002.3x1.6x1.385.76?55010360m?/h700~850

      HT-800 2.4x1.6x1.787.68?60013820m?/h750~850

      HT-9003.12x1.6x1.388.64?65015550m?/h750~850

      蓝阳环保总结国内外同类产品的生产经验,改进设计制造,推出下料形式方便,表面平整度更好,结构强度更高,吸附能力更强的。本公司生产多种规格的活性碳吸附塔,根据处理气体污染因子的不同而设计吸附时间,再根据处理废气量的大小确定吸附面积,每一个工程都是全新的设计方案。同时针对不同工艺生产中所排放的废气特性,如排放废气温度、是否含有油雾、粉尘等相关参数,在废气设备进口部分内置或增设冷却器、过滤器等预处理装置或功能段。很好的保护了吸附段,确保吸附塔在高效状态下运行。

      Jintan activated carbon adsorption tower - Jintan activated carbon purification tower [Changzhou Changzhou environmental protection equipment factory] [Changzhou environmental protection equipment factory is located in the economically developed, beautiful scenery of the Yangtze River delta. The company has a strong scientific and technological strength, professional production equipment and perfect testing equipment, with a number of CNC filament winding, vacuum introduction, RTM molding and other composite production equipment. Company: composite materials, plastic products, water treatment equipment manufacturing, glass flake lining engineering design, construction. Products are widely used in military, transportation, petrochemical, metallurgy, electricity, textile and other fields, the company has become a member of the WTC World Trade Center, products are exported to Europe, America, Southeast Asia, the Middle East and other regions. Annual production capacity of 8000 tons.

      The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupation health and safety management system certification, the national industrial products (non metal containers) production license (license number: XK12-001-00053 (Su)) and China anticorrosion construction qualification certificate (certificate number: rot characters 0155 secret association); the company of high-tech enterprises, private technology enterprises in Jiangsu Province, China industrial anti corrosion Technology Association member, Jiangsu Building Materials Industry Association, the quality of products won the city awarded the prize. The Agricultural Bank of Changzhou City branch of the Chinese enterprise funds credit, economic, management and other aspects of the assessment, was named the credit grade enterprise (AAA).

      Activated carbon adsorption tower

      An overview of activated carbon adsorption tower

      Activated carbon adsorption tower also known as activated carbon adsorption tank adsorber, activated carbon filter, activated carbon adsorption tank. HT series | activated carbon filter (tower, box) is a waste gas filtering adsorption odor and I developed the production of environmental protection equipment, activated carbon adsorption tower is available, PP stainless steel and carbon steel plate and other materials. Adsorption of activated carbon adsorption tower with high efficiency, wide application, convenient maintenance, can also handle a variety of mixed gases etc., formaldehyde, benzene, TVOC and other harmful gases and disinfection deodorizing effects with the removal of activated carbon, activated carbon adsorption tower is now widely used in electronic components (battery) battery production, production, processing and pickling laboratory ventilation, metallurgy, chemical, pharmaceutical, food, brewing, coating and other organic waste, including lacquering treatment purification is the most widely used.

      Two, working principle

      Organic waste gas powered by wind turbines, positive or negative pressure in active carbon adsorber tower, the activated carbon on the solid surface are not balanced and unsaturated molecular attraction or chemical Jianli, so when the solid surface in contact with the gas, can attract the gas molecules, the concentration and keep in solid the surface of pollutants to be adsorbed, the exhaust gas through the filter after entering the equipment dust exhaust gas purification system, air discharge.

      Adsorption process of activated carbon without dust

      The process of adsorption of activated carbon from dust containing organic waste gas

      Three, technical introduction

      Activated carbon is a black powder, granular or pellet shaped amorphous with porous carbon. The main components of carbon, but also contains a small amount of oxygen, hydrogen, sulfur, nitrogen, chlorine. It also has the fine structure of graphite, but the grain is small and the layers are irregular. With a large surface area (500 ~ 1000 m / g). Have a strong adsorption capacity, adsorption of gases on the surface of it, colloidal liquid or solid. The adsorption of gas and liquid can be close to the quality of activated carbon itself.

      The adsorption is selective and the nonpolar material is more easily adsorbed than the polar substance. In the same series of substances, the higher the boiling point of the material is more likely to be adsorbed, the greater the pressure, the lower the temperature, the higher the concentration, the greater the amount of adsorption, on the contrary, reducing pressure, heating up the desorption of favorable gases.

      Activated carbon is often used in gas adsorption, separation and purification, solvent recovery, sugar, oil, glycerin, drug decoloring agent, drinking water or a refrigerator deodorant, filter agent mask, body can also be used as catalyst or catalyst.

      When the organic exhaust gas powered by a fan, positive or negative pressure into the tower body, the activated carbon on the solid surface are not balanced and unsaturated molecular attraction or chemical Jianli, so when the solid surface in contact with the gas, can attract the gas molecules, the concentration and remained in the solid surface the pollutant and smell to be adsorbed, exhaust gas by activated carbon adsorption tower, into the dust exhaust system of gas purification equipment, air discharge.

      Activated carbon adsorber product advantages:

      High adsorption efficiency, wide application;

      Easy maintenance, no technical requirements;

      At the same time to deal with a variety of mixed waste gas.

      Activated carbon adsorber classification:

      Can be divided into square or round.

      Activated carbon adsorption filter:

      Active carbon filter is mainly used in: electronics production, battery (battery) gas production, pickling, laboratory ventilation, metallurgy, chemical, pharmaceutical, food, brewing, painting and furniture manufacturing industries such as purification, the most suitable for the purification of waste gas treatment of painting.

      Four, HT series | activated carbon filter device model and parameter

      Model dimension (m) activated carbon filtration area (m) import and export size (mm) air handling equipment resistance limit (PA)

      HT-501.2x0.8x0.70.48? 1601000m? /h500~600

      HT-1001.35x0.8x0.950.96? 2001750m? /h500~6
